Checkpoint selection — 5 October 2026

Status: all four local evaluations complete; 389 tests passed. The HPC comparison is pending its checkpoint location. No new training was run. The numerical diffusion winner is step 113,304, raw weights, effectively tied with step 37,768, EMA on the primary metric. Climatology remains the stronger accuracy baseline. The purpose was to select retained weights before spending more compute on training.

The completed comparison is logged in W&B: 2026-10-05-residual-checkpoint-selection (afh2xfwu). Its evaluation artifact contains the small manifests, results, reasoning, and figure; the large checkpoint and prediction files remain local. The uploaded selected field score was read back and verified against the local report.

Checkpoint identity

checkpoints.yaml records copied checkpoint paths, SHA-256, byte size, source modification time, optimizer step, and zero-based epoch. Copies are read-only under outputs/checkpoint_selection_20261005/checkpoints/. Read-only permissions prevent accidental writes; the recorded hashes detect changes. Original checkpoints have not been changed.

Candidate	Step	Original source	Role
Residual early	37,768	Oct 4 evaluation snapshot	Provisional reference; evaluate raw and EMA
Residual previous	84,978	Oct 5 evaluation snapshot	Historical result; preserved, not rerun
Residual latest best	113,304	Current best-epochepoch=002.ckpt	Evaluate raw and EMA
Residual recovery	114,773	Current last.ckpt	Recovery archive; not a selected candidate

All four belong to W&B run 062mpmkd. The epoch-2 filename previously held step 84,978 and now holds step 113,304. Never assign the earlier file's evaluation to the newer weights.

The HPC reproduction sgp7apkx has no checkpoint file or model artifact in W&B. Its artifact list contains only tables, history, and events. No corresponding local checkpoint was found. The user has been asked for an accessible location; this comparison remains pending. Its low DDIM preview error is a reason to evaluate it, not evidence of superiority on this benchmark. Do not substitute an unrelated local checkpoint under its name.

Experiment history and reasoning

1. Historical 32-patch comparison (Oct 3–4; already run). On 2016 GLORYS, EMA/DDPM-1000/float32, equal-depth MAE was 0.530°C for climatology, 1.162°C for residual step 37,768, 1.921°C for the Sept 30 reproduction's saved best, and 3.085°C for its evaluated last checkpoint. Evidence: outputs/residual_comparison_20261004/{summary,evaluation_manifest}.json. Decision: preserve the early residual, but retain climatology as the stronger field baseline. These results describe sampled patches, not global performance.
2. Historical later residual comparison (Oct 5; already run). Step 84,978 had equal-depth MAE 1.521°C and pixel RMSE 3.831°C on the same 32 patches. Lower denoising loss did not improve generated fields. Evidence: outputs/residual_comparison_20261005/{summary,checkpoint_metadata}.json. Decision: do not select or continue training solely by denoising loss.
3. Selection workflow verification (current). Existing full-reconstruction selection uses 128 fixed patches, independent seeded noise, globally pooled per-depth error, and EMA when configured. The ordinary validation loader stays shuffled. Retention is extended from one to three best checkpoints, with epoch and optimizer step in filenames. The full test suite is required before use.
4. Larger matched comparison (current; preregistered below). Evaluate early and latest-best residual checkpoints with both raw and EMA weights against climatology. No optimizer updates, new model variants, or training ablations.

Evaluation protocol

experiment.yaml pins each checkpoint and config checksum and the climatology artifact checksum. training_source.yaml preserves the launch template, which does not include all runtime overrides. model_source_effective.yaml preserves the actual model architecture used by the run. evaluation_config.yaml uses that effective model, DDPM, a read-only climatology copy, and zero data-loader workers for standalone inference. The trained architecture and data split are unchanged.

• 128 distinct patches drawn uniformly from the 2016 validation dataset, seed
• This is separate from the old 32-patch seed-7 diagnostic and the training selection set; exact row identities and their coverage are recorded.
• Batch size four, DDPM-1000, float32, TF32 disabled. Each batch has the same noise seed across weight variants. Both local GPUs may execute separate methods.
• Hide 20% (rounded, at least one when possible) of observed spatial profile locations per patch, at every depth; retain at least one input location. Single- location patches contribute field scores only. Surface EO remains available.
• Score full fields against dated valid GLORYS water cells and hidden profiles against the original gridded ARGO inputs on matching support. This is not independent raw EN4 validation and should not be labeled as such. GLORYS is also scored against the hidden profiles as a reference.
• Primary ranking: equal-depth RMSE (equivalent ordering to the temperature checkpoint-selection score). Report equal-depth MAE, pixel MAE/RMSE, bias, per-depth support, and profile errors too. Nonfinite scored predictions fail.
• Same tensors, masks, hidden locations, patch order, and climatology for every method. Input hashes are compared before interpreting the results. Saving per-batch predictions enables later inspection without rerunning inference.
• Because inputs now include profile holdout and the selected patches differ, numbers are not a continuation of the historical 32-patch benchmark.

Execution and evidence

Run from the repository root, substituting one declared method and device:

/work/envs/depth/bin/python -m depth_recon.scripts.compare_checkpoints \
  --manifest docs/experiments/2026-10-05-checkpoint-selection/experiment.yaml \
  --method residual_early_ema --device cuda:0 \
  --output-dir outputs/checkpoint_selection_20261005/results_attempt02

Each method writes effective configs, exact selections, input hashes, held-out locations, batch predictions, metrics, timings, and completion status. It refuses to overwrite an existing method directory. Failed attempts remain evidence and must be documented before a retry in a new output directory.

Validation commands:

/work/envs/depth/bin/python -m black .
bash tests/run_tests.sh

outputs/checkpoint_selection_20261005/provenance/ preserves the initial dirty working-tree diff and status, W&B read results, test log, and executed code state. Existing user edits are preserved. Large model and prediction files are excluded from Git; this Markdown record and the YAML manifests are versionable.

Attempts and validation

• Required black . completed: 125 files unchanged. Its Python target-version warning is recorded; exit status was zero. A sandboxed formatter attempt stalled and was interrupted before the successful host execution.
• The sandboxed full test suite stalled during dataset setup and was interrupted. The host rerun passed 389 tests in 19.626 seconds; complete log: outputs/checkpoint_selection_20261005/provenance/tests_host.log.
• Evaluation attempt 01: both EMA methods stopped before generating any predictions. Strict loading caught a 252-versus-202 input-channel mismatch. The copied launch template had climatology_residual: false, whereas the saved effective model config and both checkpoints require residual mode. This is a provenance/configuration error, not a failed model result. Initial manifests are retained as *_attempt01.yaml, and failure logs/statuses under results/.
• Evaluation attempt 02: use the saved effective architecture, including climatology_residual: true, with strict loading still enabled. Results go to results_attempt02/; failed evidence is not overwritten. Both EMA methods started first, one per GPU; raw weights follow on those same GPUs.
• The fixed draw contains 128 unique indices from 173,880 validation patches, covering 49 weekly dates and all 12 months. December has only two patches; this draw cannot support strong month-specific conclusions.

Decision rule

Promote a diffusion candidate only with explicit evidence about both field and hidden-profile performance. If climatology still wins the main field metric, retain it as the accuracy baseline and label the diffusion winner provisional. If field and profile winners differ, report the tradeoff instead of declaring one universal winner. Do not start another long training run from this result alone; first establish why the learned residual worsens its background where it does.

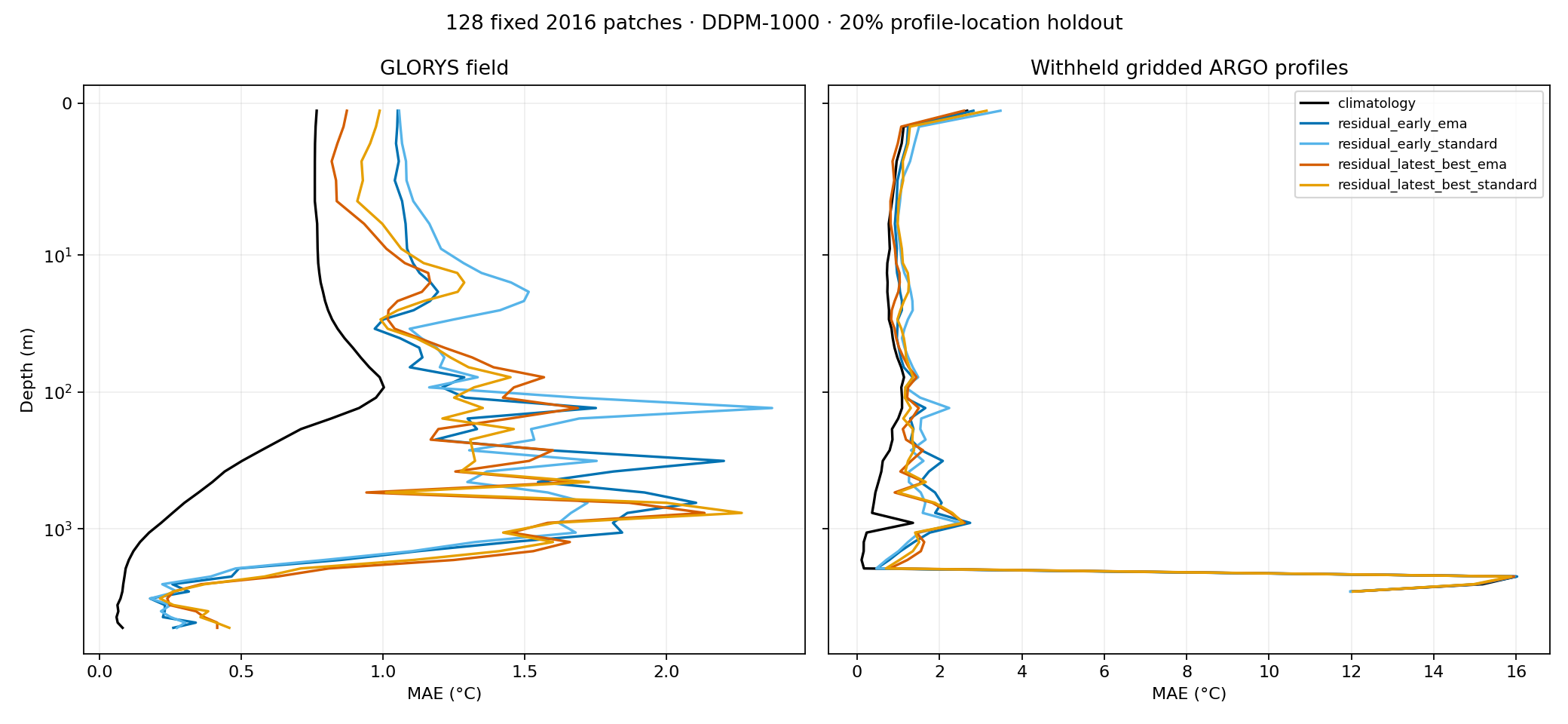

Completed results and decision

All four methods completed 128 patches with identical input and holdout hashes. There are 527 hidden grid locations counted per patch, 16,419 supported held-out temperature values, and 125 patches with a profile holdout. Three single-location patches contribute only to the field benchmark. Full machine-readable results, timestamps, evidence hashes, support counts, and checkpoint identities are in results.yaml. Each method took approximately 16 minutes; two methods ran concurrently on separate GPUs in each pass.

Method	Equal-depth field RMSE °C (primary)	Equal-depth field MAE °C	Withheld-profile pixel MAE °C
Climatology	0.9420	0.5404	0.7895
Latest raw, step 113,304	1.6713	1.0848	1.2788
Early EMA, step 37,768	1.6730	1.1061	1.2911
Early raw, step 37,768	1.7313	1.1380	1.3516
Latest EMA, step 113,304	2.0994	1.0862	1.2042

The latest raw versus early EMA primary-score difference is only 0.10%. This single seeded benchmark does not establish a meaningful improvement. Latest EMA is the best diffusion variant on profile MAE, so there is no universal diffusion winner. None beats climatology on either aggregate criterion. These are single-sample point-error rankings, not a ranking of predictive distributions. No ensemble mean, calibration, or proper probabilistic score has been evaluated. The source-QC audit below further limits the profile conclusions. Latest raw beats climatology on per-patch pixel MAE on only 22/128 field patches and 27/125 profile patches; early EMA wins 33/128 and 34/125 respectively.

Selected reference: selection.yaml points to the numerical field winner and its read-only, inference-only export: outputs/checkpoint_selection_20261005/selected_inference.ckpt. The exported tensors were checked for exact equality with the evaluated raw weights. It contains no alternate EMA weights, so the usual EMA-preferring inference loader loads precisely the selected tensors. Use evaluation_config.yaml for the matching model architecture and pinned climatology artifact. Use the archived full checkpoints for training recovery; the inference export has no optimizer state. Keep early EMA as a close alternative.

Training decision: do not restart or extend training simply because its denoising loss improves. Future runs now retain three checkpoints ranked by the existing fixed full-reconstruction score, with step-specific filenames and the ordinary validation loader still shuffled. That callback uses EMA when configured; raw/EMA comparison of retained candidates remains necessary, as this experiment demonstrates. The selected diffusion model is provisional and is not promoted over the frozen climatology baseline. The pending HPC candidate must be evaluated on this same protocol before an all-run comparison is claimed.

What worsens the climatology background

On valid field cells, the true anomaly from climatology has RMS 1.134°C. The selected raw model applies a correction with RMS 1.982°C; latest EMA applies 2.424°C. With correction c = prediction - climatology and true anomaly a = target - climatology, the exact error change is MSE(prediction) - MSE(climatology) = mean(c²) - 2 mean(c a). For latest raw this is 3.928 − 1.811 = +2.117°C²; latest EMA gives 5.877 − 1.643 = +4.234°C². Corrections have some useful alignment, but their magnitude adds more error than that alignment removes. This describes the saved predictions; it does not identify a causal training/sampler defect or validate a new correction-scaling intervention. No such ablation was run.

Limits of the profile evidence

The held-out reference is the existing gridded input, with its existing QC settings, not independently reprocessed EN4. Below 2 km there are only 1–4 held-out values per supported depth, and some disagree with both climatology and GLORYS by roughly 12–16°C. Those sparse reference values dominate equal-depth profile metrics. They remain included as preregistered; use the reported support counts and pixel-weighted profile scores, and audit their source/QC before drawing deep-ocean observational conclusions. The GLORYS field ranking is a separate, densely supported metric. No test of statistically independent patches or multiple sampling seeds was performed.

Reproduce aggregation and selection

/work/envs/depth/bin/python docs/experiments/2026-10-05-checkpoint-selection/summarize.py \
  --manifest docs/experiments/2026-10-05-checkpoint-selection/experiment.yaml \
  --results outputs/checkpoint_selection_20261005/results_attempt02 \
  --output-dir docs/experiments/2026-10-05-checkpoint-selection
/work/envs/depth/bin/python docs/experiments/2026-10-05-checkpoint-selection/export_selected.py \
  --record-dir docs/experiments/2026-10-05-checkpoint-selection \
  --output outputs/checkpoint_selection_20261005/selected_inference.ckpt

Export refuses to overwrite an existing file. Check its recorded SHA-256 rather than recreating it merely to rerun the report. The W&B logging helper records the run ID before uploading, preventing accidental duplicate experiment runs.

Implementation and interpretation audit — 5 October 2026

This follow-up inspected the implementation, the frozen climatology metadata, the saved latest-raw predictions, and their deepest held-out profile sources. No new model inference, training, ablation, or checkpoint change was performed. implementation_audit.json records exact checkpoint identity, source-file hashes, depth statistics, source profile indices, QC flags, and the audit timestamp. This follow-up is recorded locally; the earlier W&B artifact represents the comparison as it stood before this audit.

Climatology and residual reconstruction

• The frozen artifact records 1,230 fit dates from 2000-01-01 through 2024-07-26, with zero dates in validation year 2016. Its grid and depth axis match the manifest; the ARGO store's actual depth coordinates also match. The fitter excludes the validation year before accumulation. This is a retrospective held-out-year baseline, not a past-only forecasting baseline.
• The background is a monthly mean on a stride-four grid, sampled back onto native patch coordinates by nearest neighbour. Missing monthly cells fall back to training-only annual/local or depth-wide means. Depth index 49 is entirely unsupported; its placeholder is rejected if a dated target is valid there.
• Absolute observations, targets, and climatology use the same affine temperature normalization. Subtraction therefore gives (T - climatology) / 10.9333975. Missing observations remain zero with a separate mask. Prediction adds the normalized background once before denormalization. Gaussian postprocessing and known-pixel clamping are disabled in this evaluated configuration.
• Reviewed paths: climatology.py::fit_monthly_climatology, dataset _open_climatology/__getitem__, and PixelDiffusion depth-context, training, validation, and prediction methods. Existing suite coverage includes residual training targets and adding the background exactly once. The previous full-suite result remains 389 passing tests; this read-only follow-up added no production code and did not rerun that suite.

This supports the background and reconstruction implementation; it is not a blanket certification of every data path or historical training-code version. An additive climatology background changes the modeled variable to an anomaly. It does not impose an explicit depth-dependent shrinkage prior. The effective run uses x0 prediction, global temperature scaling, and pooled masked MSE, with no per-depth anomaly scaling. Smaller deep anomalies contribute less squared target variation, and deep cells have less spatial support. These are plausible optimization concerns, not experimentally established causes of the error.

Confirmed profile-quality problem

Both the actual saved data_config_effective.yaml and the frozen evaluation config have filter_bad_argo_quality: false, despite listing accepted flags 1 and 2. All 12 held-out values below 2,000 m come from five source profiles with temperature profile QC 4 and level QC 4. Their stored validity flag is still 1; validity alone therefore does not enforce quality. Decoding the source values reproduces the suspicious temperatures: for example, source profile 5,948,378 contains 30.512°C at 2,533 m, versus GLORYS 1.787°C. The depth axes match, so this trace does not indicate a shifted channel interpretation.

The existing QC policy would reject every one of these deepest held-out values. There would then be no reliable held-out profile evidence below 2 km in this draw. Historical results remain unchanged, including these observations; no post-hoc filtering has been used to improve reported scores. A corrected protocol must apply QC before rasterization and conditioning, record the resulting patch and profile support, and generate predictions for those corrected inputs. Filtering only the scoring references would leave bad conditioning untouched. The same disabled filter was used for training inputs, which merits attention before further training. The dense field targets are GLORYS, not these profiles; the separate field-score arithmetic is not invalidated by this finding.

The source trace initially stalled while opening Zarr inside the sandbox and was interrupted before reading data. A read-only host retry completed successfully.

Deep correction magnitude and probabilistic interpretation

For the saved latest-raw checkpoint, step 113,304, on the same 128 patches:

Depth m	GLORYS anomaly from climatology, RMS °C	Sampled model correction, RMS °C	Model field RMSE °C
1,062	0.367	1.920	1.928
1,942	0.239	0.961	0.949
2,533	0.240	0.595	0.576
3,992	0.185	0.926	0.941

These dense-field statistics are independent of the tiny deep-profile score support. They indicate excessive correction magnitude on this benchmark, but a single draw per input cannot separate conditional-mean error from ensemble spread. Across-patch signed correction means in the JSON are not conditional ensemble means.

A realistic random draw can have worse point error than a conditional mean even when its distribution is correct. For a fixed truth, expected squared error over model draws is (ensemble mean - truth)^2 + ensemble variance. Visual realism alone does not establish that the generated uncertainty or spatial dependencies are calibrated. This distinction is discussed in ECMWF's forecast-verification analysis. The current full-reconstruction callback correctly pools masked errors and uses fixed patches/noise, but its single-draw RMSE remains a point-error diagnostic. It cannot, by itself, select the best predictive distribution. The ordinary validation loader remains shuffled as intended.

Recommended next diagnostic, not yet run

1. Version a QC-enabled evaluation protocol, preserving this frozen comparison. Check retained profiles and support before relying on observational scores.
2. On a small fixed set with corrected inputs, evaluate about 16 independent samples per case for latest raw and early EMA. Record every seed and checkpoint hash. Compare ensemble-mean RMSE, ensemble-median MAE, CRPS, interval coverage and width by depth; add spatial/vertical dependence checks for the generated structures. Use both the deterministic climatology and a training-only empirical climatological distribution as references. Never select the sample closest to the reference. CRPS and interval scores assess distributions as described by Gneiting and Raftery.
3. Use that result to choose the intervention. A good ensemble mean with excessive spread suggests a calibration/sampling issue; a poor ensemble mean also requires investigating conditioning and learned mean errors. Consider depth-aware residual scaling or weighting only after this distinction is measured. Fit any scale or calibration on training/calibration data, leaving an independent final evaluation set for the resulting model. Do not resume long training solely on the present single-draw ranking.
